7A09 Aluminum Bar is a high strength alloy from the 7000 series aluminium family, known for its excellent mechanical properties and suitability for demanding structural applications. After appropriate heat treatment (especially T6 and T651 tempers), this alloy exhibits superior tensile strength, high yield strength, good low temperature performance, and enhanced fatigue resistance, making it ideal for aerospace and other high performance fields.
7A09 Aluminum Bar is a high strength alloy from the 7000 series aluminium family, known for its excellent mechanical properties and suitability for demanding structural applications. After appropriate heat treatment (especially T6 and T651 tempers), this alloy exhibits superior tensile strength, high yield strength, good low temperature performance, and enhanced fatigue resistance, making it ideal for aerospace and other high performance fields.

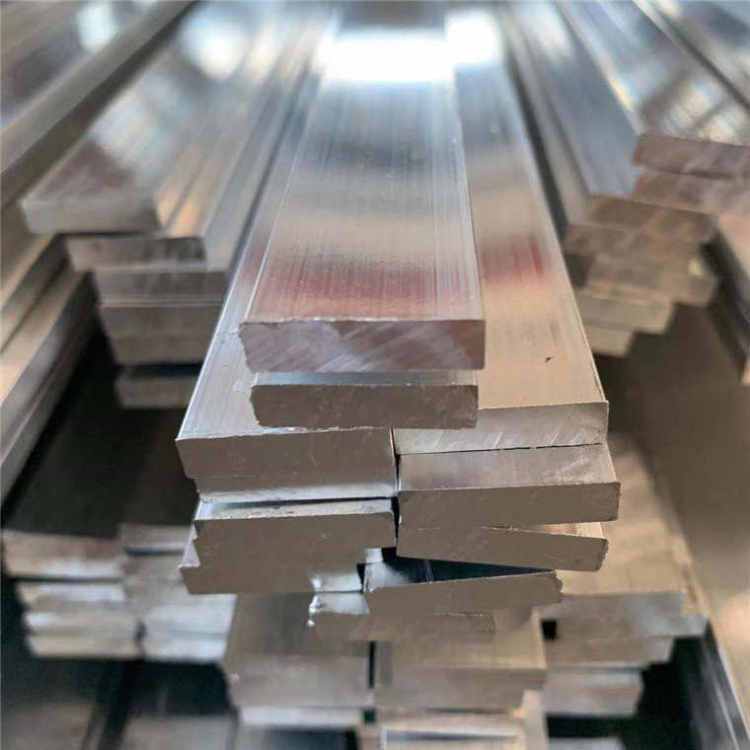

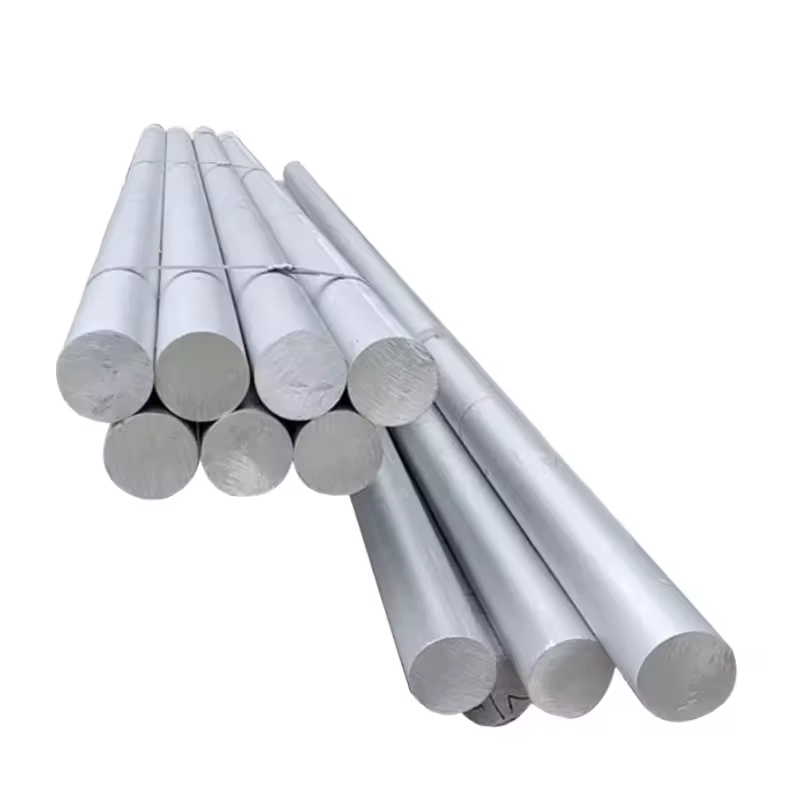

This aluminum bar can be produced in various shapes (round, square, flat, and rectangular) and custom dimensions to meet specific fabrication and engineering needs. The material demonstrates good plasticity after solution treatment, although welding performance is limited and stress corrosion resistance may require protective coating or two stage aging.
Typical applications include aerospace structural components, aircraft frames, landing gear parts, industrial mechanical parts, automotive components, tooling, and high strength fabrication projects.
| Product Name | 7A09 Aluminum Bar (Aluminium Alloy Bar / Rod) |
| Alloy Grade | 7A09 (7000 series high strength aluminum alloy) |
| Temper/Status | T6, T651 (solution heat treated & artificially aged) |
| Shape Options | Round, Square, Flat, Rectangular |
| Diameter / Thickness | Custom: e.g., Ø3.0 mm up to ~600 mm+ (Round) / 0.1 mm–400 mm+ (Flat) |
| Width | Typical: 20 mm–3000 mm+ (Flat/Rectangular) |
| Length | Custom: 100 mm–12000 mm (commonly 1500, 3000, 5000, 6000 mm) |
| Standards | ASTM B221, AMS 4123/4124/4125 (depending on supplier) |
| Surface Finish | Mill finish, polished, bright, anodized, brushed (varies by supplier) |
| Chemical Composition (Approx.) | Al balance; Zn 5.1–6.1%; Mg 2.0–3.0%; Cu 1.2–2.0%; Si ≤0.5; Fe ≤0.5; Cr 0.16–0.30; Ti ≤0.10 |
| Mechanical Properties | Tensile Strength ≈ 490–550 MPa; Yield Strength ≈ 400 MPa+; Elongation ≥ 4–6% (varies) |
| Certifications | ISO9001, RoHS, CE (depends on manufacturer) |
| Typical Surface Treatment | Anodizing, polishing, sand blasted options (varies) |
