5005 Aluminum Sheet is a medium-strength, corrosion-resistant aluminum alloy sheet widely used across architectural, industrial, marine, automotive, and decorative markets. Made from Aluminium Alloy 5005 (AlMg1), this sheet offers excellent formability, weldability, and surface finish for both mill finish and anodized applications. It is available in multiple tempers (such as O, H12, H14, H24, H32, H34), allowing flexibility in mechanical performance and fabrication needs. 5005 aluminum sheet is lightweight yet durable, making it ideal for wall cladding, roofing, signage, marine components, trim panels, industrial parts, and household goods.

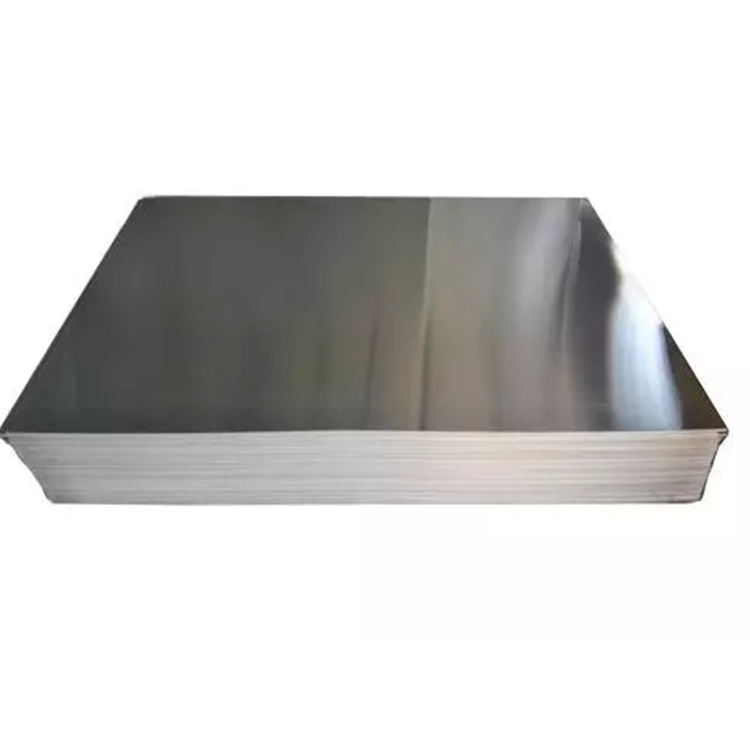

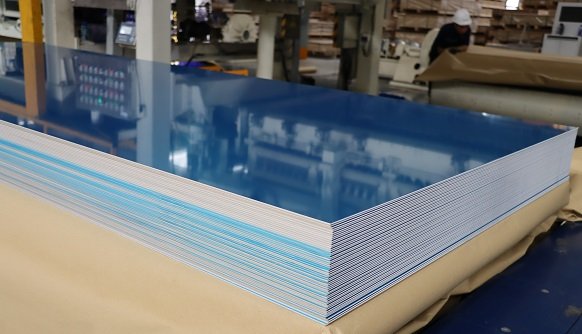

5005 Aluminum Sheet
5005 Aluminum Sheet is a medium-strength, corrosion-resistant aluminum alloy sheet widely used across architectural, industrial, marine, automotive, and decorative markets. Made from Aluminium Alloy 5005 (AlMg1), this sheet offers excellent formability, weldability, and surface finish for both mill finish and anodized applications. It is available in multiple tempers (such as O, H12, H14, H24, H32, H34), allowing flexibility in mechanical performance and fabrication needs. 5005 aluminum sheet is lightweight yet durable, making it ideal for wall cladding, roofing, signage, marine components, trim panels, industrial parts, and household goods.
| Product Name | 5005 Aluminum Sheet |
| Alloy/Material | Aluminum Alloy 5005 (AlMg1, 3.3315) |
| Temper/Status | O, H12, H14, H16, H18, H22, H24, H26, H28, H32, H34, H36, H38 (varies by supplier) |
| Thickness Range | 0.008″–9.84″ (0.2 mm – 250 mm) typical ranges; many suppliers stock 0.2 mm – 10 mm for sheets |
| Width Range | 35.4″ – 149.6″ (900 mm – 3800 mm) / 500 mm – 2600 mm typical |
| Length Range | Up to ~6 m or longer (custom cut to size available) |
| Surface Finish Options | Mill finish, anodized, brushed, polished, sandblasted, painted, PVDF/PE coated, film coated |
| Standards | ASTM B209, EN 573, EN 485 (and variants) |
| Chemical Composition (approx.) | Al balance; Mg 0.5–1.1 %; Fe ≤0.7 %; Si ≤0.3 %; Zn ≤0.25 %; Mn, Cu, Cr ≤0.2 % each (others ≤0.05 %) |
| Mechanical Properties | Medium strength; specific values vary by temper (e.g., H34 ~135–180 MPa tensile) |
| Density | ~2.68 g/cm³ |
| Key Features | Lightweight, excellent corrosion resistance, easy to form and weld, good anodizing compatibility |
| Typical Markets/Applications | Architectural cladding & curtain walls, roofing, signage, transportation panels, marine components, appliance panels, industrial fabrications, custom OEM parts |
