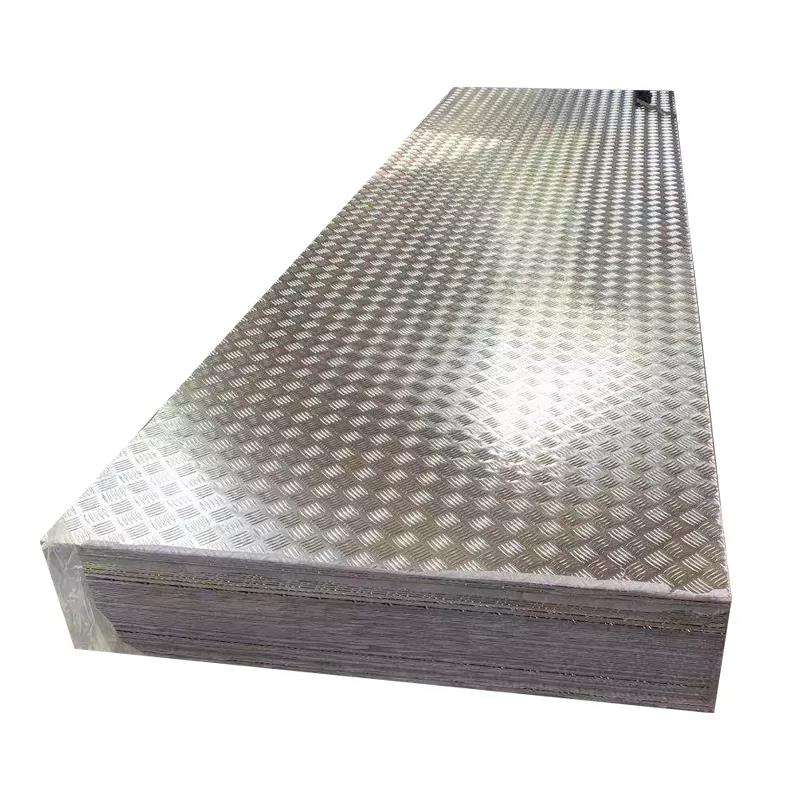

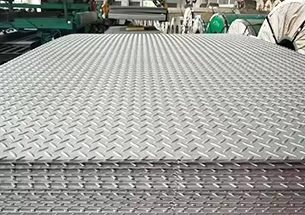

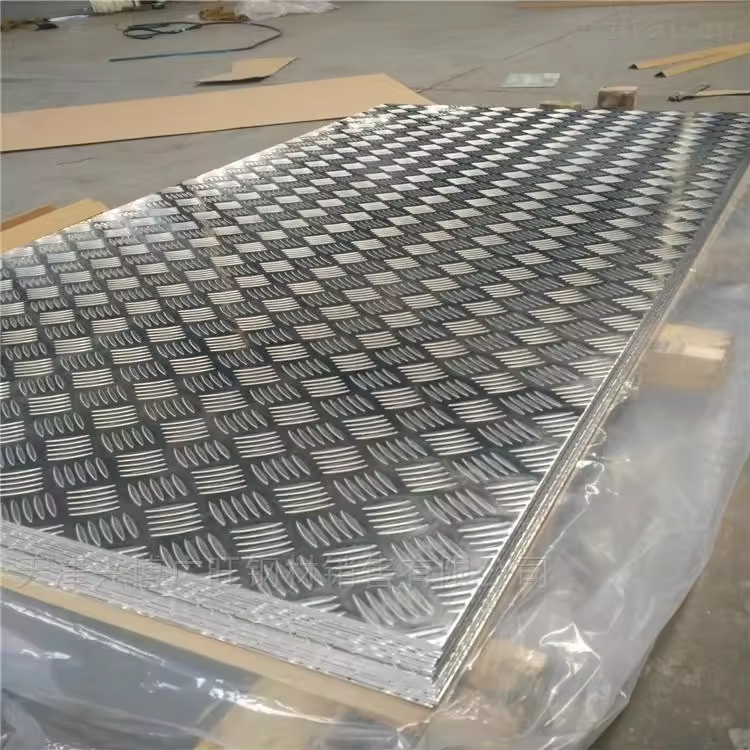

5754 Aluminum Diamond Plate is a high performance aluminum alloy tread plate manufactured from the 5754 series alloy with a distinctive diamond pattern surface that enhances grip and anti slip performance. This alloy contains magnesium as a primary alloying element, offering superior corrosion resistance, strength, and weldability compared with lower grade aluminum. The diamond pattern surface provides traction for safe walking surfaces while remaining lightweight and durable, making it ideal for industrial, architectural, marine and transport applications.
5754 Aluminum Diamond Plate is a high performance aluminum alloy tread plate manufactured from the 5754 series alloy with a distinctive diamond pattern surface that enhances grip and anti slip performance. This alloy contains magnesium as a primary alloying element, offering superior corrosion resistance, strength, and weldability compared with lower grade aluminum. The diamond pattern surface provides traction for safe walking surfaces while remaining lightweight and durable, making it ideal for industrial, architectural, marine and transport applications.
This type of plate is typically offered in multiple tempers (e.g., H111, H114, H22) and surface finishes, including mill finish or bright finish, to meet a wide range of fabrication and installation needs. It is available in custom sizes and can be cut or rolled to specific dimensions based on customer requirements.
The anti corrosion and anti skid properties of 5754 aluminum diamond plate make it particularly suitable for harsh environments such as coastal, industrial or chemical exposure, while its lightweight nature facilitates easy handling and installation.
Specification Table – 5754 Aluminum Diamond Plate
| Product Name | 5754 Aluminum Diamond Plate |
| Alloy Grade | 5754 (Al Mg alloy) |
| Material Temper | O, H111, H114, H22, H32, H34 (common available) |
| Pattern Type | Diamond (1 bar) surface pattern |
| Thickness Range | 0.8 mm – 10.0 mm (typical), various thicknesses customizable |
| Common Thickness Options | 1.2 mm, 1.5 mm, 2.0 mm, 3.0 mm, 4.0 mm, 6.0 mm |
| Width Range | 100 mm – 2650 mm (custom up to extra wide) |
| Length Range | Cut to length, commonly 2000 mm – 6000 mm |
| Surface Finish | Mill finish, Bright finish (optional protective film) |
| Pattern Height | 0.5 mm – 1.5 mm (varies with thickness) |
| Standards & Compliance | EN, ASTM, GBT (varies by manufacturer) |
| Weight per Pallet (Approx.) | ~2.5 tons |
| Core Applications | Flooring plates, loading ramps, dock platforms, stair treads, vehicle bodies, trailers |
| Additional Uses | Wall cladding, decorative panels, cabinetry, chemical plant fittings, ship and port structures |
