1070 Aluminum Alloy is a commercially pure aluminum alloy in the 1000 series with minimum 99.5% aluminum content and excellent corrosion resistance, electrical conductivity, weldability, and formability. Due to its high purity and lightweight nature, it is widely used in electrical, construction, automotive, and industrial applications where high ductility and conductivity are required rather than high strength.

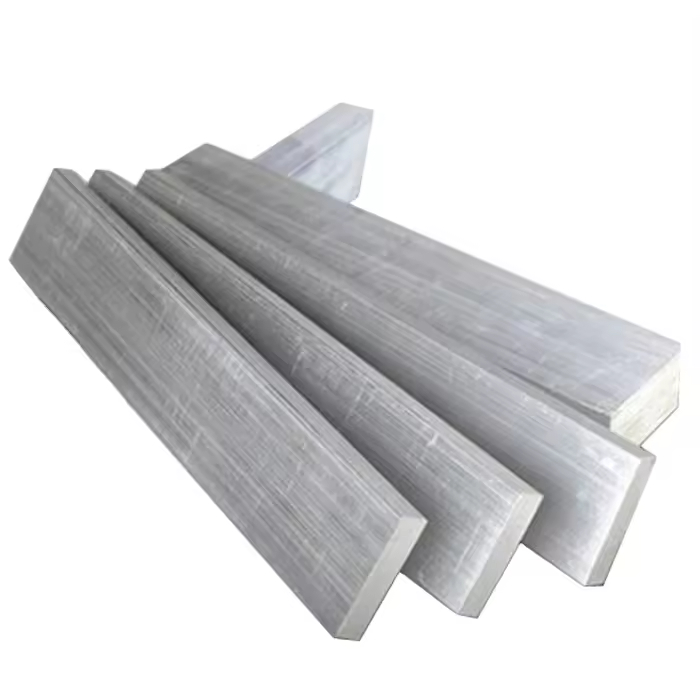

| Item | Surface Finish | Diameter Range | Available Tempers |
| Aluminum Alloy Bar | Bright Finish | Φ6–Φ400 mm | 1070 / 1070H14 / 1070H24 / 1070H18 |
| Black Skin | Φ6–Φ400 mm | 1070 / 1070H14 / 1070H24 / 1070H18 |
Processing Services
Annealing, sawing cut.
| Item | Surface Finish | Thickness Range | Available Tempers |
| Aluminum Alloy Strip | Bright Finish | 0.1–3 mm | 1070 / 1070H14 / 1070H24 / 1070H18 |
Services
Annealing, slitting, edge trimming.
| Standard | Type | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti / Others | Al (Min) |
| GB/T 3190 | Max | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | 0.03 | 0.04 | – / – | 99.7 |
| Min | 0.15 | 0.20 | 0.02 | 0.02 | 0.02 | 0.02 | 0.03 | – / – | — |
| Property | Value |
| Density | 2.71 g/cm³ |
| Elastic Modulus | 7.0 kg/mm² |
| Thermal Expansion (20–100 °C) | 23.8 × 10⁻⁶ |
| Thermal Conductivity (25 °C) | 0.49 |
| Electrical Resistivity (20 °C) | 0.0285 |
| Melting Temperature | 645–655 °C |
| Corrosion Resistance | Weldability | Formability | Machinability | Anodizing Quality | Brazing |
| Excellent | Excellent | Excellent | Good | Excellent | Excellent |
| Property | Min | Max |
| Yield Strength (kg/mm²) | 2.5 | 3.0 |
| Tensile Strength (kg/mm²) | 7.0 | 8.0 |
| Elongation (%) | 30 | 35 |
| Fatigue Strength (kg/mm²) | 2.5 | 3.0 |
| Brinell Hardness (HB) | 16 | 20 |
| Property | Min | Max |
| Yield Strength (kg/mm²) | 9.5 | 10.5 |
| Tensile Strength (kg/mm²) | 10.0 | 11.0 |
| Elongation (%) | 7 | 10 |
| Fatigue Strength (kg/mm²) | 3.0 | 3.5 |
| Brinell Hardness (HB) | 28 | 32 |
| Property | Min | Max |
| Yield Strength (kg/mm²) | 11.5 | 12.5 |
| Tensile Strength (kg/mm²) | 12.5 | 13.5 |
| Elongation (%) | 6 | 8 |
| Fatigue Strength (kg/mm²) | 3.5 | 4.0 |
| Brinell Hardness (HB) | 32 | 36 |
| Property | Min | Max |
| Yield Strength (kg/mm²) | 14.0 | 15.0 |
| Tensile Strength (kg/mm²) | 15.0 | 16.0 |
| Elongation (%) | 4 | 6 |
| Fatigue Strength (kg/mm²) | 4.0 | 5.0 |
| Brinell Hardness (HB) | 36 | 40 |
| China (GB) | USA (AA) | Japan (JIS) | Europe (EN) | ISO |
| 1070 | 1070 | A1070 | EN AW-1070A | Al99.7 |
| 1070A | 1070A | A1070A | EN AW-1070A1 | Al99.7A |
| 1050 | 1050 | A1050 | EN AW-1050A | Al99.5 |
| 1060 | 1060 | A1060 | EN AW-1060 | Al99.6 |
| 1080 | 1080 | A1080 | EN AW-1080A | Al99.8 |
| 1100 | 1100 | A1100 | EN AW-1100 | Al99.0Cu |
| 1350 | 1350 | A1350 | EN AW-1350 | Al99.5 |
